Foam Void Fill for Foundation Stabilization
Understanding Void Fill Technology for Foundation Problems
Foam void fill is a specialized foundation repair technique designed to address empty spaces that develop beneath concrete slabs and foundation structures.
These voids typically form when soil erodes, settles, or washes away due to poor drainage, plumbing leaks, or natural soil consolidation. Left untreated, these gaps compromise structural support and can lead to cracking, settling, and significant foundation damage.
The void fill process utilizes expanding polyurethane foam that is precisely injected into problem areas through strategically placed ports.
As the foam expands, it completely fills empty spaces while simultaneously compacting surrounding soils to create a stable support base. This dual-action approach not only eliminates existing voids but also helps prevent new ones from forming.
Signs Your Foundation Needs Void Fill Services
Recognizing the warning signs of voids beneath your foundation can help you address problems before they escalate into costly repairs. Common indicators include uneven or sloping floors, cracks appearing in interior walls or floor tiles, doors and windows that stick or won't close properly, and visible gaps between walls and floors or ceilings. You might also notice that your concrete patio, driveway, or garage floor has developed a hollow sound when walked upon.

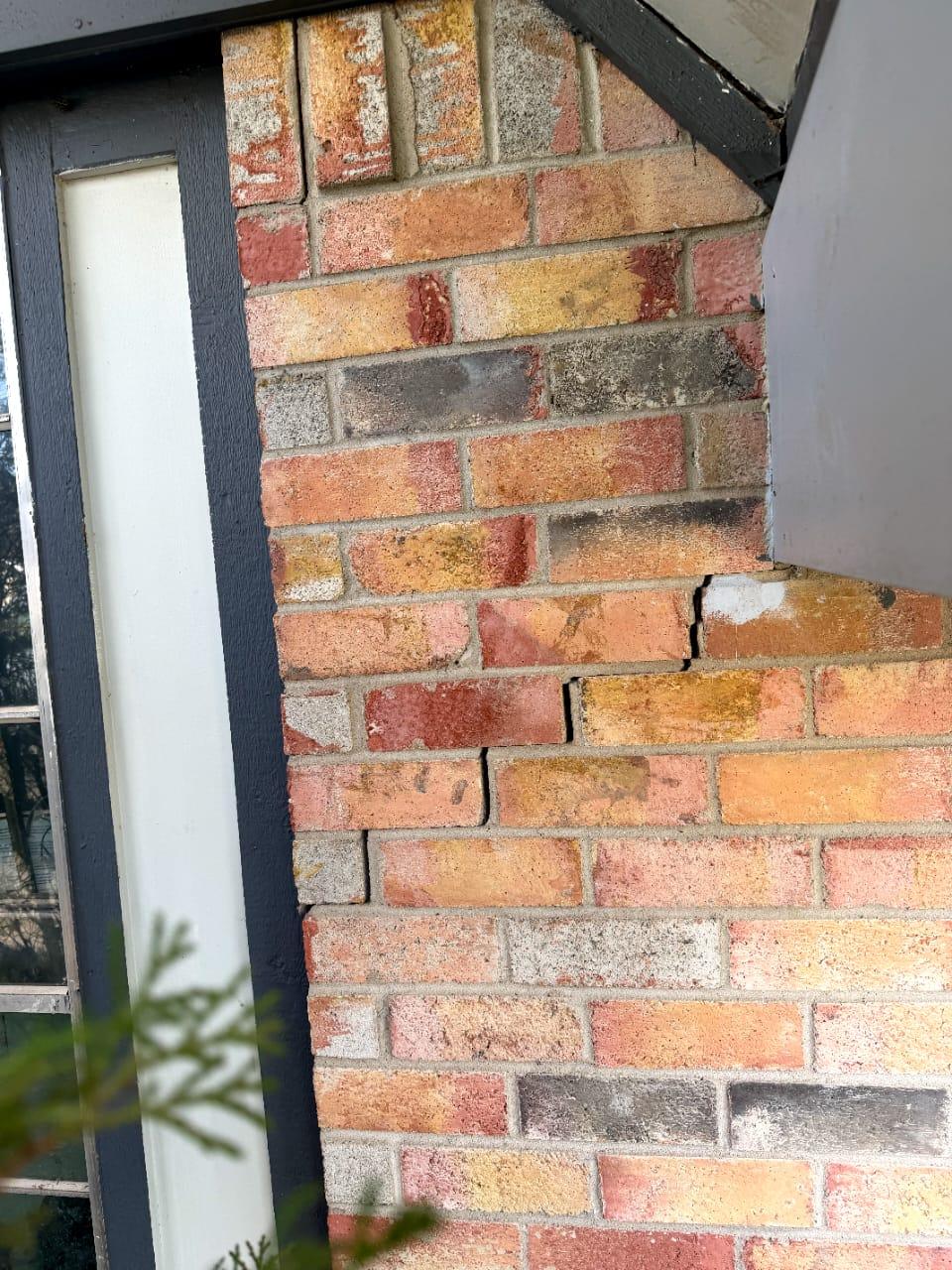

Exterior symptoms often include cracks in brick or stone veneer, separation between your foundation and exterior walls, and areas of concrete that have visibly settled or tilted. If you observe water pooling near your foundation after rain or notice that your gutters and downspouts aren't directing water away from your home effectively, you may already have void formation occurring beneath your foundation.
Early intervention with foam void fill can prevent minor issues from becoming major structural concerns.

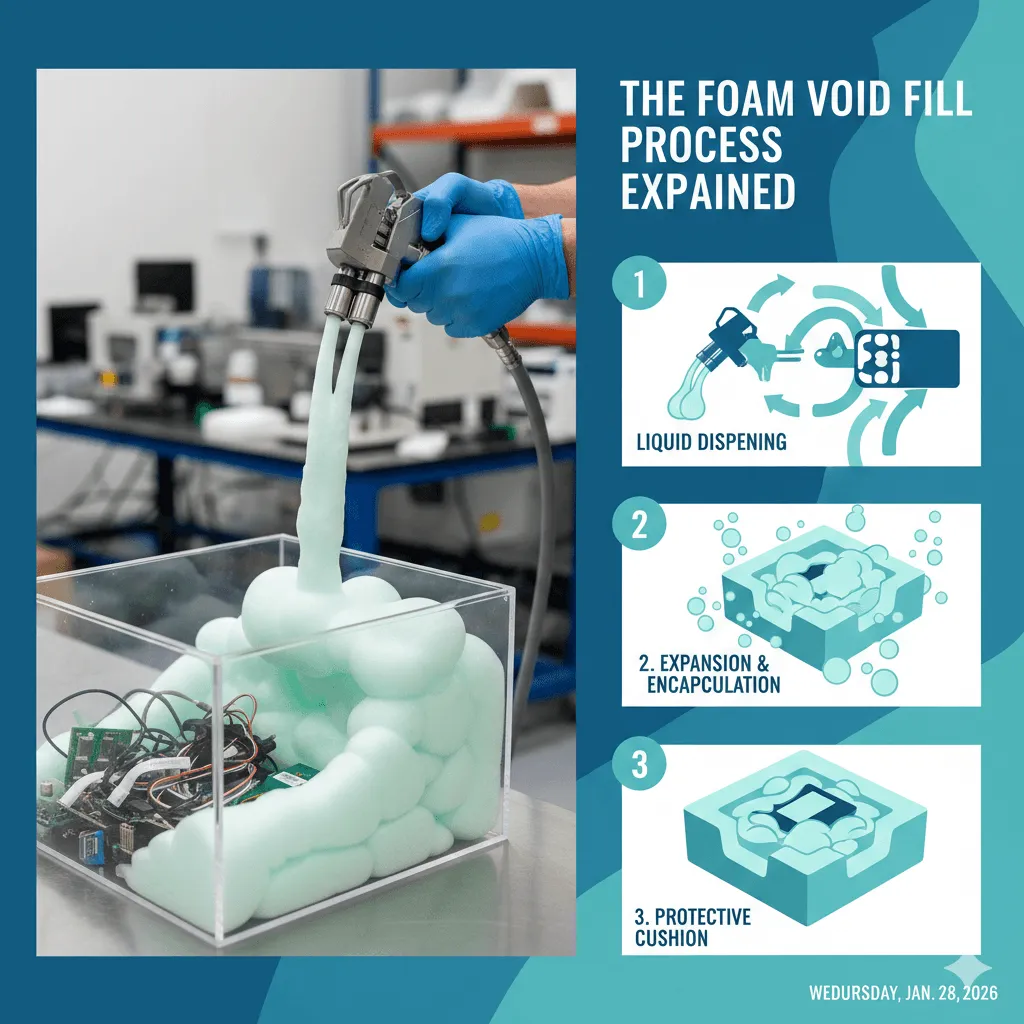

The Foam Void Fill Process Explained

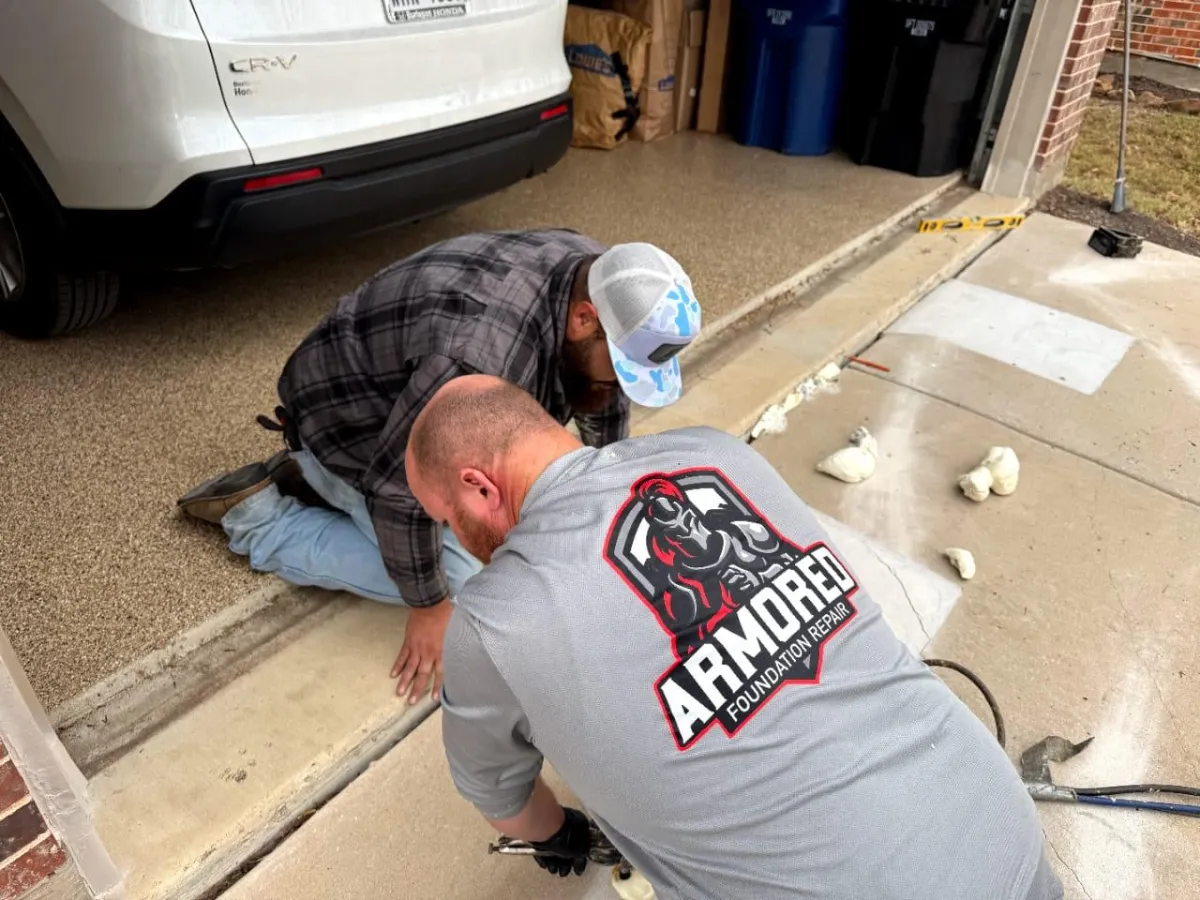

Professional foam void fill service begins with a thorough inspection to identify void locations and assess the extent of soil loss beneath your foundation.
Technicians use specialized equipment to determine the size and depth of voids, creating a detailed treatment plan. Small injection ports, typically 5/8-inch in diameter, are then drilled through the concrete at strategic locations to access the voids below.
High-density polyurethane foam is carefully injected through these ports in controlled amounts, with technicians monitoring the process to ensure complete void filling without over-injection.
The foam expands to 15-20 times its liquid volume, flowing into all gaps and crevices before curing into a solid, stable mass. The entire process usually takes just a few hours, the injection holes are sealed with color-matched material, and the treated area is ready for use almost immediately. This makes foam void fill one of the most efficient and least disruptive foundation repair solutions available.
Free Foundation Inspection
Not sure what’s going on beneath your home? We offer free foundation inspections to identify issues early and explain your options clearly, without pressure.
You'll Receive:
A detailed evaluation
An honest assessment
A clear repair plan if needed
